Nebulabio provide a premier High-throughput Protein Production service, delivering an industrialized and automated platform for the parallel expression and purification of hundreds to thousands of recombinant proteins. Designed to meet the massive scale demands of modern proteomics, structural genomics, and drug discovery pipelines, our service transforms genetic information into purified, QC-verified protein samples with unprecedented speed and consistency. By integrating automated molecular cloning, parallelized small-scale expression in multiple host systems (E. coli, insect, mammalian), and robotic liquid handling for purification, we eliminate the traditional bottlenecks of sequential protein production. We empower researchers in academia and industry to accelerate large-scale functional studies, screen protein libraries, and validate therapeutic targets by providing a reliable, scalable pipeline that matches the throughput of next-generation sequencing and high-content screening technologies.
☞Introduction to High-throughput Protein Production
High-throughput Protein Production is a systematic, industrialized approach to generating numerous recombinant protein constructs in parallel, rather than one at a time. This paradigm shift is essential for projects where scale and speed are critical, such as:
● Proteome-scale Studies: Generating protein libraries to represent a significant fraction of an organism's proteome for functional annotation.
● Antibody and Binder Discovery: Expressing hundreds of potential antigen targets or antibody variants for rapid screening campaigns.
● Structural Biology Initiatives: Producing multiple homologs, truncations, or point mutants of a target protein to identify constructs amenable to crystallization or Cryo-EM.
● Enzyme and Pathway Analysis: Creating comprehensive mutant libraries for directed evolution or metabolic pathway reconstitution.
Our platform is built on miniaturization, automation, and standardization. Reactions are conducted in microtiter plates (96, 384-well format), and every step—from plasmid preparation and cell culture to lysis and purification—is performed by robotic workstations. This ensures not only high throughput but also exceptional reproducibility and minimal sample-to-sample variation, which is crucial for comparative analysis.
| ☎ +86-15801534258 | ✉ info@nebulabio.cn | Contact Us ☜☜ |
☞High-throughput Protein Production Process

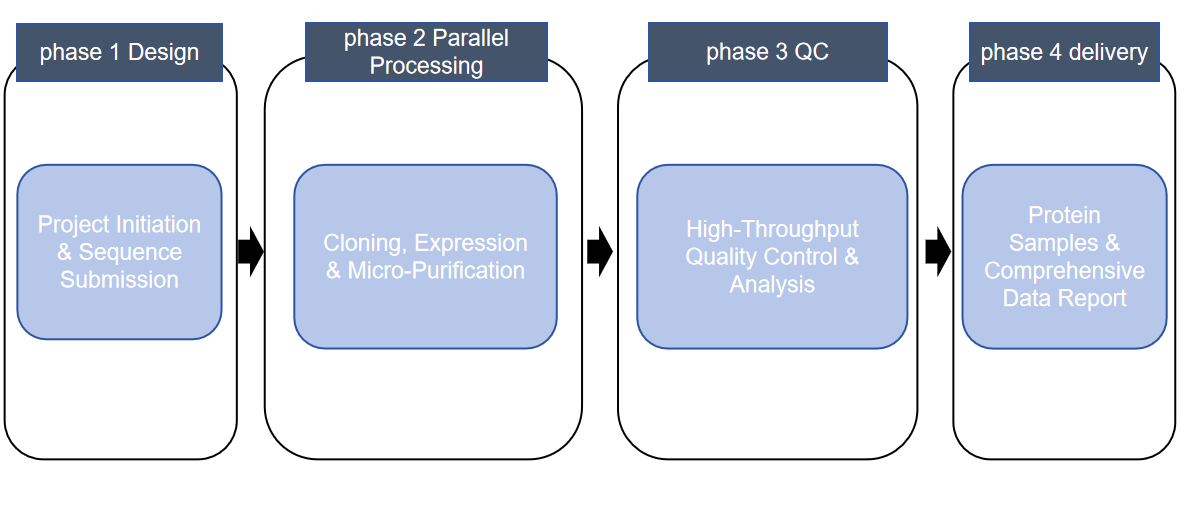

Our optimized, multi-stage workflow is engineered for maximum parallel processing efficiency without compromising protein quality.
Phase 1: Cloning & Construct Management ● Gene Synthesis/Amplification: Target sequences are codon-optimized and synthesized or PCR-amplified in parallel. ● Automated Cloning: Using liquid handlers, genes are simultaneously cloned into a panel of expression vectors (with various tags: His, GST, MBP, etc.) via restriction-ligation or recombination-based methods. ● Clone Verification: Plasmid DNA is prepared in high-density plate formats and verified by automated colony PCR or sequencing. |
Phase 2: Parallel Expression & Screening ● Host Transformation/Transfection: Expression vectors are transformed into E. coli or transfected into insect (baculovirus) or mammalian (HEK293) cells in 96-deep well blocks. ● Micro-scale Expression: Small-scale cultures are grown under standardized, yet condition-optimized protocols (e.g., varying temperature, inducer concentration) to screen for soluble expression. ● Expression Analysis: A fraction of each culture is lysed, and total and soluble protein expression is analyzed by automated SDS-PAGE (e.g., using capillary electrophoresis systems) or dot-blot to identify the best-performing constructs and conditions. |
Phase 3: Automated Micro-purification ● Culture Scale-up & Harvest: Positive expression cultures are scaled up in deep-well plates, and cells are harvested by micro-centrifugation or filtration. ● Robotic Purification: Cell pellets are resuspended and lysed robotically. The lysates are then processed for affinity purification. For His-tagged proteins, this typically involves binding to nickel-chelate resin in filter plates, followed by automated wash and elution steps. ● Buffer Exchange & Normalization: Eluted proteins are simultaneously desalted and transferred into a standard storage buffer (e.g., PBS or Tris). Protein concentrations are normalized based on absorbance measurements. |
Phase 4: Quality Control & Delivery ● High-throughput QC: A sample from each purified protein undergoes rapid quality assessment. This includes: ①Concentration Check: UV absorbance measurement. ②Purity & Integrity Analysis: Automated capillary electrophoresis (CE-SDS) or microfluidic gel systems. ③Identity Confirmation: Optional mass spectrometry analysis on key samples. ● Plate-based Storage & Shipment: The final purified, QC-checked proteins are arrayed in microtiter plates, sealed, and shipped on cold packs along with a comprehensive data file mapping well positions to protein identity, sequence, yield, and QC metrics. |
☞NNebulabio Service Content and Highlights
Service Content: ● End-to-End Project Management: We handle the entire process from sequence submission to delivery of purified proteins in plates. ● Multi-Host Expression Screening: Parallel expression trials in E. coli, insect cell (baculovirus), and mammalian (HEK293) systems to identify the optimal platform for each protein. ● Flexible Construct Design: Generation of constructs with N- or C-terminal tags (His, GST, SUMO, Fc, etc.), truncations, and point mutations as specified. ● Scale Flexibility: Production from microgram (for screening) to milligram (for assay development) quantities per protein. ● Comprehensive Data Delivery: A structured digital report containing all protocols, expression data, purification yields, and QC results for every sample. |

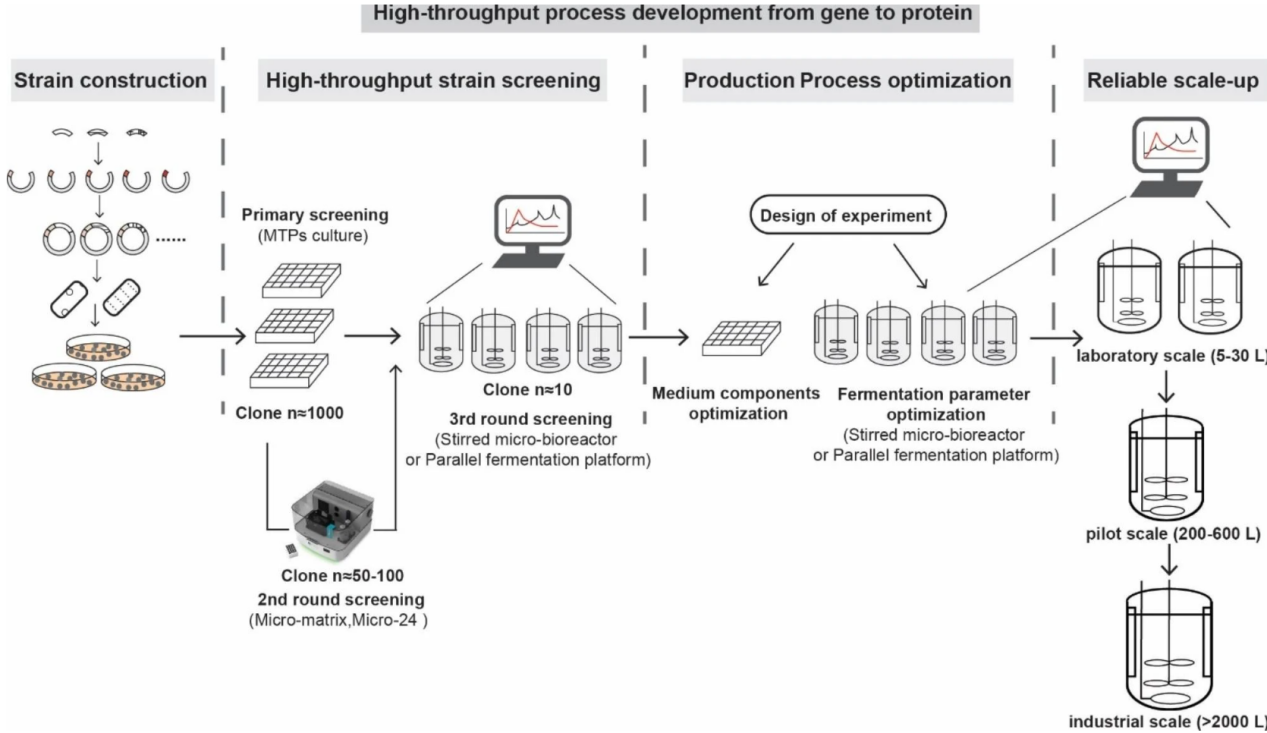

Figure1.High-throughput process development from gene cloning to protein production
Service Highlights: ● Unmatched Speed and Scale: Produce hundreds of purified proteins within 4-8 weeks, accelerating project timelines from months to weeks. ● Automation-Driven Consistency: Robotic automation ensures minimal human error and exceptional reproducibility across thousands of samples, enabling reliable comparative data. ● Integrated "DNA-to-Protein" Pipeline: A single point of accountability for the entire complex workflow, from bioinformatics design to physical protein sample. ● Expert Troubleshooting & Optimization: Our scientists proactively address expression challenges (e.g., solubility, toxicity) using tailored strategies like fusion tags, chaperone co-expression, and condition screening. ● Cost Efficiency at Scale: The parallelized approach significantly reduces the per-protein cost compared to traditional, sequential production methods, making large-scale projects economically viable. |
☞Applications of High-throughput Protein Production
● Functional Proteomics & Protein Microarray Fabrication: Generating thousands of purified proteins for immobilization on chips to study protein-protein, protein-DNA, or protein-drug interactions on a proteome-wide scale.
● Therapeutic Target Screening & Validation: Rapid production of potential disease targets (kinases, GPCRs, etc.) for high-throughput screening (HTS) campaigns to identify small molecule or biologic leads.
● Structural Genomics Pipelines: Supplying the high-quality, diverse protein samples needed for large-scale structural determination initiatives (X-ray, NMR, Cryo-EM).
● Antigen & Antibody Library Production: Generating arrays of viral antigens, cancer biomarkers, or mutant proteins for epitope mapping and diagnostic antibody discovery.
● Enzyme Engineering & Metabolomics: Creating mutant enzyme libraries for screening improved activity or novel function, and producing enzymes for reconstructing metabolic pathways in vitro.
● Reagent Generation for CRISPR and Functional Genomics: Producing proteins (e.g., antibodies, engineered nucleases) to validate hits from genetic screens via phenotypic assays.
☞Power Your Large-Scale Discovery with Industrialized Protein Production
Nebulabio’s High-throughput Protein Production Service is the engine for the next generation of large-scale biological research. Move beyond the limitations of one-at-a-time cloning and expression to unlock the power of parallel processing for your most ambitious projects.
Contact Nebulabio today to discuss your large-scale protein production needs and receive a detailed project proposal.
For more information, please contact us at info@nebulabio.cn or +86-15801534258.
