☞Introduction to scFv Phage Display Technology

The single-chain variable fragment (scFv) is one of the most versatile and widely used formats in phage display-based antibody discovery. An scFv is a recombinant antibody fragment constructed by fusing the variable heavy (VH) and variable light (VL) chains of an antibody with a short, flexible peptide linker (typically 15-25 amino acids). This design preserves the essential antigen-binding site within a single, compact polypeptide chain.

When integrated into phage display technology, the scFv gene is fused to a phage coat protein gene (e.g., gene III of the M13 bacteriophage). The resulting phage particle displays the functional scFv protein on its surface while encapsulating the gene that encodes it. This creates a direct physical link between phenotype (binding function) and genotype (DNA sequence), enabling the high-throughput screening of billions of unique scFv variants against any target of interest through an iterative process called biopanning.

Our specialized service focuses on the construction of high-diversity, high-quality scFv phage display libraries, providing the foundational resource for discovering novel therapeutic, diagnostic, and research reagents.

☞Fundamentals of scFv Phage Display

The effectiveness of an scFv library hinges on its design and the principles of its display. Key fundamentals include:

• Genetic Architecture: The scFv gene is typically assembled in the format VH-linker-VL or VL-linker-VH. The linker sequence (commonly (Gly₄Ser)₃) is critical—it must be long and flexible enough to allow the VH and VL domains to fold correctly and reconstitute the antigen-binding paratope, but not so long as to promote dimerization or instability.

• Phage Display Vector: The scFv gene cassette is cloned into a phagemid vector upstream of the gene encoding a phage coat protein (e.g., pIII). This vector also contains a bacterial origin of replication, an antibiotic resistance marker, and a promoter for scFv expression.

• Display and Secretion: Inside E. coli host cells, the scFv-pIII fusion protein is expressed and translocated to the periplasm, where the oxidative environment facilitates proper disulfide bond formation and folding. During phage assembly, the fusion protein is incorporated into the nascent phage particle, resulting in its display on the virion surface.

• Valency: Using a standard phagemid/helper phage system, scFvs are typically displayed in a monovalent fashion (one scFv per phage). This is crucial for the selection of high-affinity binders, as it avoids avidity effects that can mask weaker, but potentially valuable, interactions.

☞Our scFv Library Construction Service Process

Nebulabio provide end-to-end, custom scFv library construction with rigorous quality control at every stage. Our proven workflow ensures the delivery of a library with maximum functional diversity.

 Step 1: Source Material Acquisition & Gene Amplification

• Immune Libraries: RNA is isolated from the spleen or lymph nodes of immunized animals (e.g., mice, rabbits, chickens). cDNA is synthesized, and VH and VL genes are amplified using family-specific or degenerate primers.

• Naïve Libraries: RNA is extracted from human donor B-cells (peripheral blood lymphocytes or tonsils). A similar amplification strategy captures the natural, unimmunized antibody repertoire.

• Synthetic Libraries: Designed VH and VL gene segments are synthesized de novo. Diversity is introduced into the Complementarity-Determining Regions (CDRs) via trinucleotide mutagenesis or other advanced techniques to create tailored, humanized diversity.

 Step 2: Assembly & Cloning

The amplified VH and VL gene pools are assembled into a full scFv cassette via splicing by overlap extension (SOE) PCR. The pooled scFv fragments are then ligated into our high-efficiency phage display vector at a dedicated cloning site upstream of the pIII gene.

 Step 3: Library Transformation & Primary Stock Creation

The ligated DNA is purified and introduced into electrocompetent E. coli cells via high-voltage electroporation, a method that maximizes transformation efficiency to achieve the highest possible library size. The transformed cells are recovered, amplified, and stored as a primary bacterial glycerol stock.

Step 4: Phage Library Rescue & QC

A portion of the bacterial library is infected with helper phage to produce the scFv-displaying phage particles. This phage stock is the working library for panning. We perform comprehensive QC:

• Library Size: Titration to determine the total number of independent clones (typically 10⁹ - 10¹¹ CFU).

• Insert Rate: PCR on random colonies to confirm >90% contain the full scFv insert.

• Diversity Assessment: Next-generation sequencing (NGS) of the library to analyze the distribution of VH/VL families, CDR3 lengths, and overall sequence diversity.

 Step 5: Delivery

The final deliverable package includes the phage display library stock, the corresponding bacterial glycerol stock, and a comprehensive QC report detailing library size, diversity metrics, and insert analysis.

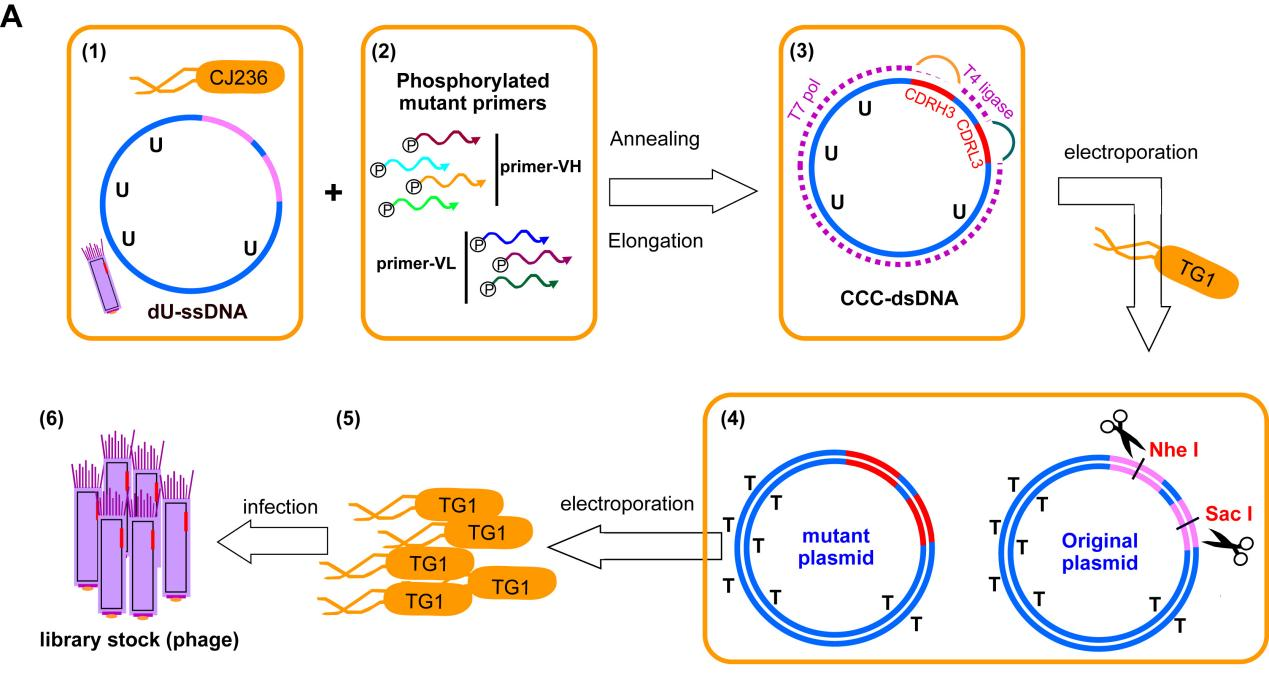

Figure 1. Construction of a humanized scFv antibody library.

☞Types of scFv Phage Display Libraries

Nebulabio construct libraries tailored to different project starting points and goals:

• Naïve scFv Libraries: Derived from the natural, unimmunized B-cell repertoires of humans or other species. These libraries offer universal utility against a vast array of antigens but may require more extensive screening and affinity maturation to obtain high-affinity binders.

• Immune scFv Libraries: Constructed from animals immunized with a target antigen or related antigen family. These libraries are pre-enriched for binders, significantly increasing the frequency of positive clones and the likelihood of isolating high-affinity, specific scFvs from the outset.

• (Semi-)Synthetic scFv Libraries: Built on one or more human framework regions, with designed diversity introduced into the CDRs, particularly CDR-H3. This allows for the creation of highly humanized libraries with controlled, optimized diversity that can be tailored for specific properties like high stability or expression.

• Focused/Directed Libraries: Created for affinity maturation or specificity engineering. Starting from a known lead scFv sequence, random or targeted mutagenesis is applied to specific regions (e.g., CDRs) to create a "sub-library" for improving binding characteristics.

☞Types of scFv Phage Display Libraries

Libraries constructed through our service enable a wide spectrum of applications:

• Therapeutic Antibody Discovery: Direct discovery of human or humanized scFv leads against novel drug targets, including cancer antigens, cytokines, and viral proteins.

• CAR-T Cell Engineering: scFvs are the standard antigen-binding domain in Chimeric Antigen Receptors (CARs). Libraries can be screened to find optimal scFvs for next-generation cell therapies.

• Diagnostic Reagent Development: Selection of highly specific scFv pairs for use in immunoassays (ELISA, lateral flow) and imaging probes.

• Intracellular Antibodies (Intrabodies): Selected scFvs can be expressed inside cells to modulate protein function, offering a research and potential therapeutic tool.

• Affinity Maturation: Improving the binding strength (K_D) of an existing antibody by creating and screening mutagenesis libraries of its scFv format.

• Bispecific Antibody Engineering: scFvs serve as modular building blocks for constructing bispecific antibodies that engage two different targets.

☞Advantages and Limitations of scFv Phage Display

Partner with Nebulabio to build the high-quality, diverse scFv library that will become the cornerstone of your next discovery success. Our expertise ensures your library is not just large, but functionally rich and primed for high-performance screening.
