☞Introduction to VHH Libraries

VHH (Variable domain of Heavy-chain only antibodies), commonly known as Nanobodies, represent a revolutionary class of antibody fragments derived from camelids (e.g., llamas, alpacas) and cartilaginous fish. Unlike conventional antibodies, these molecules consist of a single monomeric variable domain that retains full antigen-binding capacity within a compact ~15 kDa structure.

VHH libraries, when coupled with phage display technology, offer a uniquely powerful platform for antibody discovery. The intrinsic properties of VHHs—including exceptional stability (resistance to high temperature, pH extremes, and denaturants), high solubility, deep tissue penetration, and the ability to bind unique and cryptic epitopes (e.g., enzyme active sites)—make them ideal candidates for therapeutic, diagnostic, and research applications. Screening a VHH library enables the rapid identification of these robust binders against virtually any target, from soluble proteins to complex membrane receptors, often yielding leads that are difficult or impossible to obtain with traditional IgG or scFv formats.

☞Types of VHH Libraries

☞Screening & Enrichment: The Biopanning Process

The core of our service is the execution of optimized biopanning cycles designed specifically for the characteristics of VHHs. This iterative in vitro selection process enriches a library of billions for specific, high-affinity binders.

A Standard Panning Round Includes:

（1）Binding: The VHH phage library is incubated with the immobilized target antigen (coated on a plate, conjugated to beads, or presented on a cell surface)

（2）Stringent Washing: Non-specific or weakly bound phage particles are removed through a series of controlled washes. The stringency (buffer composition, wash time, and number) is carefully modulated and increased over successive rounds to selectively favor the strongest interactions.

（3）Elution: Specifically bound VHH-phage particles are recovered. We employ various strategies:

• Competitive Elution: Using a high concentration of soluble target to displace specific binders.

• Acidic/Denaturing Elution: Using low-pH glycine buffer to disrupt the antigen-antibody interaction.

• Protease Cleavage: For libraries designed with a specific cleavage site between the VHH and the phage coat protein.

（4）Amplification: The eluted phage is used to infect a fresh culture of E. coli (e.g., TG1 strain). The bacteria are rescued with helper phage, leading to the production of a new, amplified phage pool enriched for target-specific VHHs.

This cycle is typically repeated 3 to 5 times. After each round, polyclonal phage ELISA is performed to monitor enrichment. Following the final round, individual clones are isolated for monoclonal analysis.

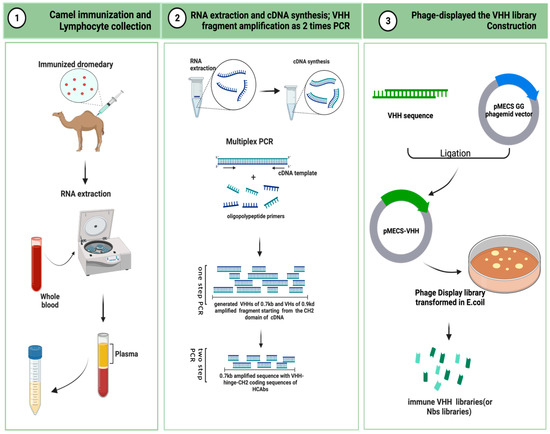

Figure1. Schematic representation to generate immune VHH libraries.

☞Applications of VHH Libraries

VHHs isolated through our screening service are transformative across multiple sectors:

• Therapeutics: Development of mono- and multi-specific drugs, especially for targeting complex disease drivers (GPCRs, ion channels) or for conditions requiring blood-brain barrier penetration. Their stability allows for alternative delivery routes (inhalation, topical).

• Diagnostics & Imaging: Creation of superior detection reagents for ELISA, lateral flow assays, and biosensors. Their small size and rapid clearance make them ideal for in vivo molecular imaging (PET, SPECT) with high signal-to-noise ratios.

• Cell & Gene Therapy: Engineering VHH-based binding domains for next-generation CAR-T cells, where their compact structure can improve receptor surface expression and signaling.

• Research Tools: As intracellular antibodies ("intrabodies") to modulate, track, or degrade specific proteins within living cells, or as highly specific affinity purification reagents.

• Antiviral & Antitoxin Agents: Neutralizing viruses or toxins by accessing conserved, recessed epitopes that are inaccessible to larger antibodies.

☞5.How is a VHH Library Constructed? Our Service Process

While Nebulabio primary service is screening, we also offer full-service custom VHH library construction. Understanding the build process ensures confidence in the screening source material.

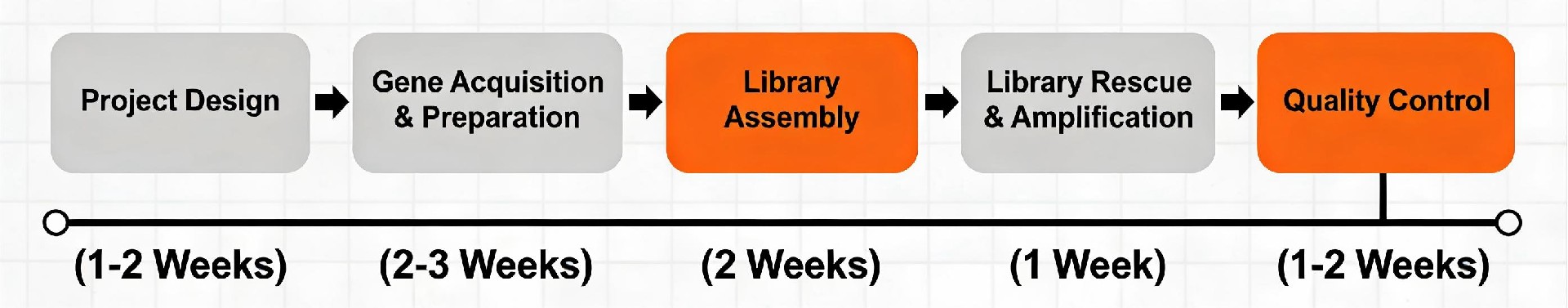

 Our Construction Workflow:

☞VHH Phage Display Systems

VHHs are typically displayed using filamentous phage systems (M13, fd, f1). The choice of vector system is crucial:

• Phagemid System (Most Common): The VHH gene is cloned into a plasmid containing a phage origin of replication. Upon superinfection with a helper phage (e.g., M13K07), the phagemid is packaged into viral particles that display the VHH-pIII fusion. This system allows for monovalent display, which is essential for true affinity-based selection, preventing avidity effects that could mask weaker binders.

• Phage System: The VHH gene is inserted directly into the phage genome. This can lead to polyvalent display (multiple copies per phage), which is useful for detecting low-affinity interactions but less ideal for affinity maturation.

Nebulabio Standard Platform: We primarily utilize advanced phagemid-based systems (e.g., pComb3X or proprietary vectors) for VHH display. This ensures:

• High Library Diversity: Due to greater transformation efficiency.

• Controlled Monovalent Display: For selection of high-affinity binders.

• Flexibility: Easy subcloning of selected VHH genes into soluble expression vectors post-panning.

Partner with Nebilabio expert team to leverage the unique advantages of VHHs. From selecting the optimal library to executing a tailored panning strategy, we provide an end-to-end solution for discovering stable, specific, and potent Nanobody leads.
