About Us

Nebulabio is a premier biotechnology Contract Research Organization (CRO) with a dedicated focus on advanced antibody discovery platforms. Our team brings together deep expertise in immunology, molecular biology, and protein engineering. We specialize in constructing high-diversity, functional antibody libraries, with a particular proficiency in Fab (Fragment antigen-binding) format libraries. By leveraging the unique advantages of the Fab scaffold, we provide our clients with a superior starting point for discovering therapeutic, diagnostic, and research-grade antibodies with optimal developability profiles.

☞Introduction to the Fab Antibody Fragment

The Fab fragment is a crucial component of a full-length immunoglobulin G (IgG) antibody. It constitutes the "arms" of the classic Y-shaped antibody structure and is solely responsible for specific antigen recognition and binding.

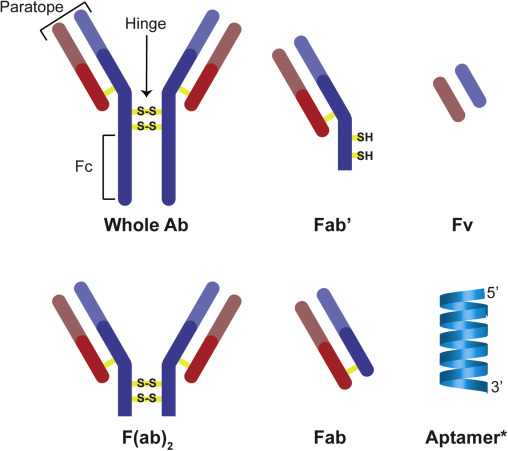

Structural Diagram of a Fab Fragment:

Figure1.An illustration of whole antibodies (Ab), F(ab)2, Fab', Fab, Fv, and aptamers.

Why Choose Fab for Library Construction?

Unlike single-chain formats (e.g., scFv), the Fab maintains the natural, independent folding and assembly of its heavy and light chains. This often leads to:

• Higher Expression Yields in systems like E. coli periplasm.

• Improved Stability and Solubility due to the stabilizing interchain disulfide bond.

• Reduced Risk of Aggregation compared to some scFv constructs.

• Seamless Conversion to full IgG format for downstream therapeutic development.

☞Applications of Fab Phage Display Libraries

Fab libraries serve as powerful tools across the biopharmaceutical and diagnostics pipeline:

• Therapeutic Antibody Discovery: As the direct precursor to full IgG, Fab libraries are ideal for primary lead discovery against challenging targets like membrane proteins (GPCRs, ion channels), where maintaining native domain interactions is critical for function.

• Diagnostic & Assay Development: Isolating highly specific Fab pairs for use in sandwich ELISA, lateral flow assays, and biosensors, where the bivalent nature of the final IgG (derived from the Fab) is advantageous.

• Antibody Humanization & Affinity Maturation: Using Fab libraries for in vitro maturation campaigns ensures selected improvements are compatible with the full IgG structure.

• Epitope Mapping & Binning: Fab fragments are excellent for defining precise binding sites on antigens, crucial for intellectual property protection and understanding mechanism of action.

• Bispecific Antibody Engineering: Fab arms serve as standard building blocks in many bispecific antibody platforms (e.g., knob-into-hole, DuoBody®).

☞Our Fab Library Construction Service Process

Nebulabio offer a complete, custom Fab library construction service, from strategic design to delivery of a fully characterized, ready-to-screen resource. Our workflow is designed for maximum diversity and functionality.

 Phase 1: Project Design & Source Material Preparation

We collaborate with you to define the library scope:

• Library Type: Naïve (from non-immunized donors), Immune (from immunized hosts), or Synthetic.

• Species: Human, mouse, rabbit, or other species.

• Source: We perform RNA extraction from B-cell sources (PBMCs, spleen, bone marrow) or design synthetic gene repertoires.

 Phase 2: Gene Amplification & Assembly

• Separate Amplification: VH+CH1 (Fd fragment) genes and VL+CL (Light chain) genes are amplified independently using family-specific or degenerate primers.

• Combinatorial Assembly: The pools of Fd and Light chain genes are randomly combined and cloned into a specialized phagemid vector (e.g., pComb3X series). This vector is engineered to co-express both chains and facilitate their assembly in the bacterial periplasm, with the Fd fragment fused to the phage coat protein pIII.

 Phase 3: Library Transformation & Primary Stock Generation

The ligated phagemid library is transformed into competent E. coli via high-efficiency electroporation. The transformed cells are grown and stored as a primary bacterial glycerol stock, capturing the full genetic diversity of the library (typically >10⁹ - 10¹⁰ independent clones).

 Phase 4: Phage Library Rescue & Quality Control

A portion of the bacterial library is infected with helper phage to produce Fab-displaying phage particles. We then conduct rigorous QC:

• Library Size Titering

• Insert Rate Analysis via colony PCR for both heavy and light chains.

• Diversity Assessment using Next-Generation Sequencing (NGS) to analyze VH/VL pairing, CDR3 length, and sequence distribution.

• Functional Test: A quick panning against a standard antigen to confirm library panning capability.

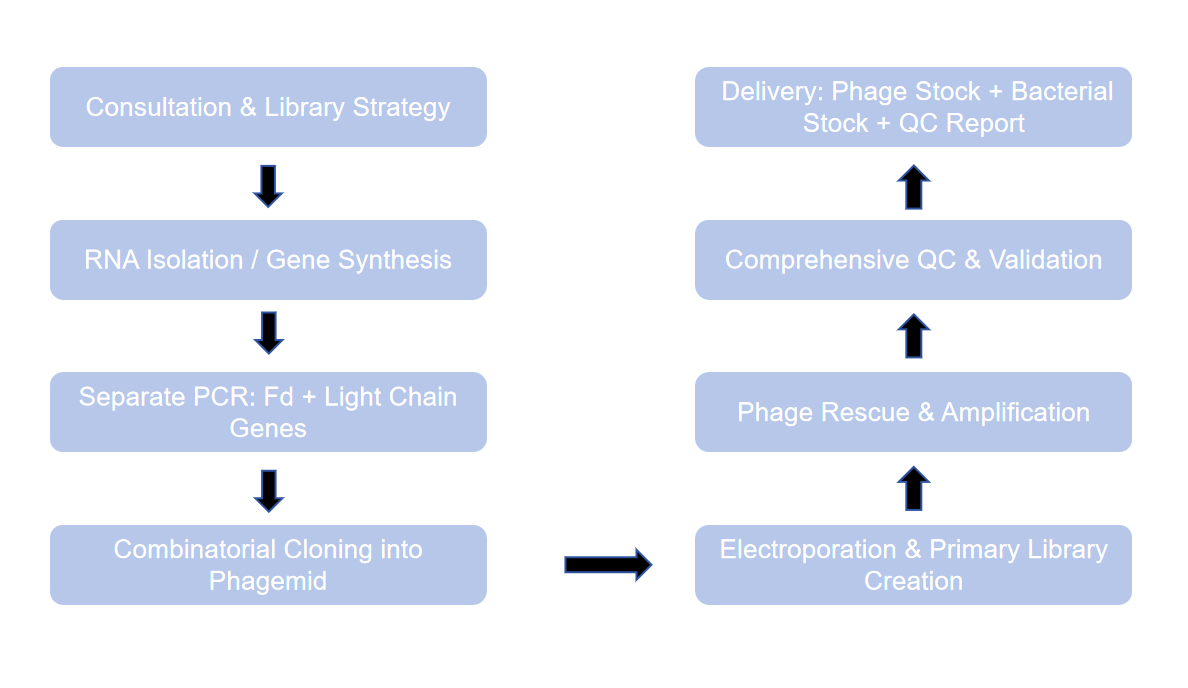

 Service Process Flowchart:

☞Advantages and Limitations of Fab Technology

 Advantages:

• Native IgG Structure: Maintains the natural heterodimeric architecture, leading to excellent stability and folding efficiency.

• Superior Developability: Fabs often exhibit higher expression yields and lower aggregation propensity than scFvs in microbial systems, streamlining downstream production.

• Direct Path to IgG: The sequence can be directly transferred to an IgG expression vector without reformatting, accelerating the development timeline.

• Bivalent Potential: The format is inherently compatible with conversion to bivalent IgG, which can be crucial for functional activity requiring avidity.

• Robust Performance in Screening: The stable structure can lead to lower false-positive rates in panning and more consistent expression during screening.

 Limitations & Considerations:

• Larger Size: The Fab fragment (~50 kDa) is larger than scFv or VHH, which might limit tissue penetration in some in vivo applications (though this is primarily relevant for the final IgG).

• Two-Gene System: Requires the correct pairing and expression of two separate gene products, which adds complexity to library construction and can sometimes lead to chain mispairing in very large combinatorial libraries.

• Bacterial Expression Complexity: While generally good, expressing and assembling two chains with a disulfide bond in the E. coli periplasm is more complex than expressing a single scFv chain.

Partner with Nebulabio to leverage the robust Fab format for your discovery pipeline. Our expertise ensures the construction of a high-diversity, high-quality library that provides a solid foundation for identifying superior antibody candidates with excellent developability potential.
