Welcome to Nebulabio’s state-of-the-art Protein Purification Platform, where we transform complex biological mixtures into highly purified, functionally active proteins. As a leading Contract Development and Manufacturing Organization (CDMO), we specialize in developing and executing robust purification strategies for a diverse range of proteins—from recombinant antibodies and enzymes to complex membrane proteins and viral antigens. Our platform combines deep scientific expertise with cutting-edge chromatography technology and analytical instrumentation to deliver proteins of exceptional purity, yield, and activity. Whether you require milligram quantities for research or gram-to-kilogram scale for clinical manufacturing, our tailored, end-to-end service ensures your protein is purified to the exact specifications needed for your next breakthrough in drug discovery, diagnostic development, or structural biology.
☞Protein Purification Process
Protein purification is the strategic separation of a target protein from a complex mixture of contaminants, including host cell proteins (HCPs), nucleic acids, lipids, endotoxins, viruses, and product-related impurities (aggregates, fragments). Our process follows a proven, orthogonal approach, where multiple purification techniques with different separation mechanisms are combined to achieve the required purity and safety profile.

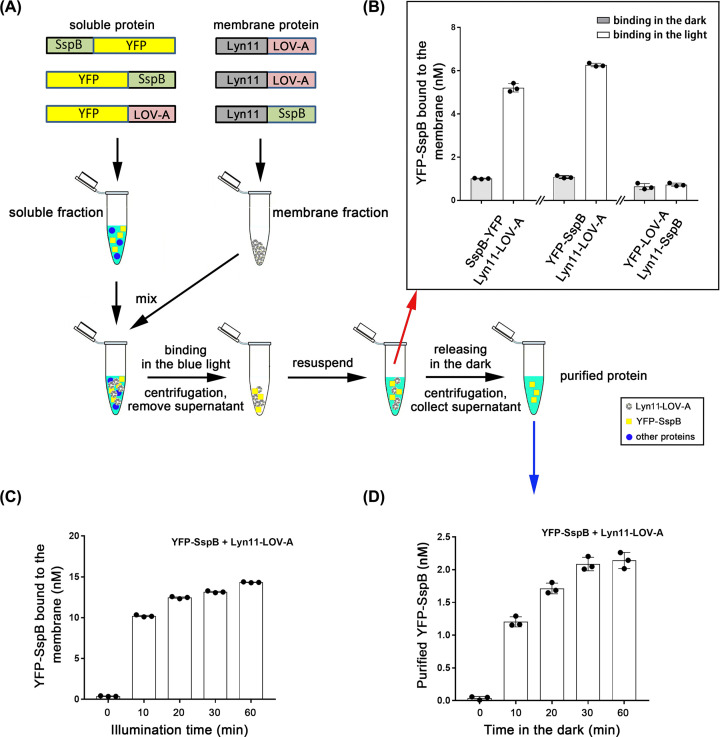

Figure1. Light-assisted protein purification based on iLID/SspB after Xenopus oocyte expression
Our Core Purification Workflow:
| Step 1 Capture & Initial Purification | Step 2 Intermediate Purification (Polishing) | |
The primary goal is to isolate and concentrate the target protein from a large volume of crude starting material (e.g., cell culture supernatant, lysate, serum).
| This phase removes the bulk of remaining impurities that co-eluted during capture.
| |
Step 3 Final Polishing & Formulation | Step 4 Analytical Characterization & Quality Control (QC) | |
The final steps ensure the removal of trace impurities and prepare the protein for its end use.
|
|
| ☎ +86-15801534258 | ✉ info@nebulabio.cn | Request a Quote ☜ |
☞Common Protein Purification Methods
We master a full toolkit of chromatographic and non-chromatographic techniques, selecting and combining them to create the optimal purification strategy for each unique protein.
Method | Separation Principle | Primary Application | Key Advantages | Considerations |
Affinity Chromatography | Specific biological interaction (e.g., antibody-antigen, enzyme-substrate) | Capture step for tagged proteins (His-tag, GST, MBP) and antibodies (Protein A/G). | Extremely high selectivity and purity in one step; excellent yield. | Requires a specific tag/ligand; ligand leaching risk; can be expensive. |
Ion Exchange Chromatography (IEX) | Net surface charge at a given pH | Capture & polishing. Removal of HCPs, DNA, aggregates. | High capacity; versatile; scalable; relatively low cost. | Requires optimization of pH and conductivity; may not resolve similarly charged proteins. |
Size Exclusion Chromatography (SEC) | Hydrodynamic size (Stokes radius) | Final polishing. Aggregate removal, buffer exchange. | Excellent for separating HMW/LMW species; gentle (isocratic). | Low capacity and slow flow rates; dilutes the sample. |
Hydrophobic Interaction Chromatography (HIC) | Surface hydrophobicity | Polishing. Removal of aggregates and hydrophobic variants. | Effective where other methods fail; orthogonal to IEX. | Requires high salt to promote binding; can denature some proteins. |
Mixed-Mode Chromatography | Combination of 2+ interactions (charge, hydrophobicity, hydrogen bonding) | Capture or polishing for challenging proteins. | Unique selectivity; can purify proteins that don't bind well to standard resins. | More complex method development; limited resin choices. |
Precipitation | Solubility reduction (by salt, pH, polymer) | Initial clarification & concentration from large volumes (e.g., serum, fermentation broth). | Simple, rapid, cost-effective; good for volume reduction. | Low to moderate purity; often requires follow-up chromatography. |
☞Applications of the Protein Purification Platform
Nebulabio’s purified proteins serve as critical reagents and products across the life sciences continuum:
Therapeutic Protein & Biologics Manufacturing: Purification of monoclonal antibodies, fusion proteins, enzymes, cytokines, and other biologics for preclinical studies, clinical trials, and commercial supply under GMP conditions.
Structural Biology & Biophysics: Production of ultra-pure, homogeneous proteins for techniques like X-ray crystallography, cryo-electron microscopy (cryo-EM), and nuclear magnetic resonance (NMR), where sample homogeneity is paramount.
Diagnostic Reagent & Assay Development: Purification of antigens, calibrators, and conjugated antibodies for use in ELISA, lateral flow assays, chemiluminescent platforms, and point-of-care diagnostics.
Enzyme & Catalyst Production: Isolation of industrial or research enzymes with high specific activity for biocatalysis, metabolic engineering, and biochemical assays.
Vaccine Antigen Production: Downstream processing of recombinant subunit vaccine antigens, virus-like particles (VLPs), and other immunogens.
Membrane Protein Research: Specialized purification of challenging targets like GPCRs and ion channels, using detergents or alternative systems (nanodiscs, styrene-maleic acid copolymers) to maintain stability and function.
Cell & Gene Therapy: Purification of critical ancillary materials, such as growth factors and cytokines, used in cell culture processes for Advanced Therapy Medicinal Products (ATMPs).
☞Nebulabio Service Workflow
Our client-centric workflow is designed for transparency, collaboration, and efficiency, guiding your project from initial inquiry to purified protein delivery.
Step 1: Project Consultation & Strategy Design
We begin by understanding your protein, its source, required purity, quantity, and intended application. We then design a custom purification strategy and provide a detailed project proposal with timeline and cost.
Step 2: Feasibility Study & Method Development
For novel or challenging proteins, we often start with a small-scale feasibility study. We test different chromatography resins and conditions to develop a robust, scalable purification protocol, providing you with the data to make an informed decision.
Step 3: Process Scale-Up & Production
Once the method is locked, we scale up the process to the required volume. This is executed in our dedicated purification suites using AKTA™ process-scale chromatography systems and controlled bioreactors.
Step 4: In-Process Analytics & Process Monitoring
We perform analytical testing (SDS-PAGE, HPLC, etc.) at key purification steps to monitor yield, purity, and remove process deviations, ensuring consistency.
Step 5: Final Purification, Formulation & QC
The final polishing steps are executed. The protein is formulated into your specified buffer, sterile-filtered, and undergoes comprehensive QC testing.
Step 6: Data & Product Delivery
You receive the purified protein, along with a comprehensive Certificate of Analysis (CoA) and a detailed purification report, including all chromatograms and analytical data
Partner with Nebulabio’s Protein Purification Platform to obtain the high-quality, well-characterized protein essential for your project's success. Our expertise and scalable solutions provide a reliable path from complex mixtures to pure, functional proteins.
For more information, please contact us at info@nebulabio.cn or +86-15801534258.
