Overview

Nebulabio provide a premier Alpaca Immunized Antibody Library construction service, a cutting-edge platform designed for the discovery of unique and highly functional single-domain antibodies, known as VHHs or nanobodies. Camelids, such as alpacas, possess a distinctive immune system that naturally produces heavy-chain-only antibodies. The variable regions of these antibodies (VHHs) are exceptionally stable, soluble, and capable of binding challenging epitopes inaccessible to conventional antibodies. Our service harnesses this powerful biological system by immunizing alpacas with your target antigen, thereby generating a rich and diverse immune repertoire specifically enriched for VHH sequences. We offer a complete, end-to-end solution from antigen design and animal immunization to the construction of ready-to-screen phage or yeast display libraries, providing you with a direct pipeline to discover novel, high-affinity nanobodies for therapeutic, diagnostic, and research applications.

☞What is an Alpaca Immunized Antibody?

Alpaca immunized antibodies refer specifically to the single-domain antibody fragments (VHHs or nanobodies) derived from the immune response of an alpaca following immunization with a target antigen. Unlike traditional antibodies found in humans and mice, which consist of both heavy and light chains, a significant proportion of camelid antibodies are heavy-chain-only. The antigen-binding fragment of these unique antibodies is composed of a single variable domain, the VHH.

Key Characteristics and Advantages of Alpaca VHHs (Nanobodies):

• Small Size (~15 kDa): Significantly smaller than conventional antibodies (~150 kDa) or even Fab fragments (~50 kDa). This small size enables superior tissue penetration, access to cryptic or concave epitopes (e.g., enzyme active sites), and rapid blood clearance for imaging applications.

• High Stability & Solubility: VHHs are remarkably stable, resistant to extreme pH, high temperatures, and chemical denaturants. They are highly soluble due to the substitution of several hydrophobic amino acids in their framework with more hydrophilic ones, reducing aggregation.

• Strong Binding Affinity: Despite their small size, VHHs can achieve affinities in the low nanomolar to picomolar range, rivaling or exceeding those of conventional antibodies.

• Ease of Engineering & Multimerization: Their simple, single-gene structure makes them ideal for genetic fusion, creating multivalent (bi-, tri-specific) constructs, fusions with toxins, radionuclides, or enzymes, and easy formatting for various display technologies.

• Efficient Production: VHH genes can be easily expressed in microbial systems like E. coli and yeast at high yields, offering a cost-effective production advantage.

An Alpaca Immunized Antibody Library is a collection of these VHH genes, cloned from the lymphocytes of an immunized alpaca, and formatted for high-throughput screening to isolate clones binding specifically to your target.

☞Alpaca Immunized Antibody Library Development Process

Nebulabio’s library construction process is optimized to capture the full diversity and quality of the alpaca immune response.

■ Antigen Design & Immunization Protocol: We collaborate on designing an effective immunogen and a customized immunization schedule for alpacas, ensuring a robust and specific humoral response. The use of multiple antigen formulations or boosts can broaden epitope recognition.

■ Alpaca Immunization & Serum Monitoring: Alpacas are immunized under strict ethical and veterinary oversight. Regular blood samples are drawn to monitor the development of antigen-specific antibodies via ELISA.

■ Lymphocyte Isolation & RNA Extraction: After confirming a strong immune response, a larger volume of blood is collected via phlebotomy to isolate peripheral blood lymphocytes (PBLs). Total RNA is extracted from these immune cells.

■ cDNA Synthesis & VHH Gene Amplification: cDNA is synthesized from the RNA. Using camelid-specific primers that target the conserved regions flanking the VHH domain, the entire repertoire of VHH genes is amplified via PCR.

■ Library Cloning into Display Vector: The amplified VHH gene pool is cloned, typically using restriction-ligation or seamless cloning techniques, into a phage display vector (e.g., pHEN) or a yeast display vector. This creates a physical library where each bacterial or yeast clone displays a unique VHH on its surface.

■ Library Transformation & Quality Control: The ligated DNA is transformed into competent E. coli cells to generate the primary library. Critical quality control steps include:

• Library Size: Determining the number of independent transformants (colony-forming units, CFU). A high-quality immune library typically contains >10^8 – 10^9 individual clones, ensuring comprehensive coverage of the immune repertoire.

• Insert Rate & Diversity: Random colony PCR or restriction analysis is performed to verify the percentage of clones with correct inserts. Next-Generation Sequencing (NGS) of the library pool can be used to analyze VHH family distribution and sequence diversity.

• Library Packaging & Validation (for Phage Display): For phage libraries, the transformed bacteria are rescued with helper phage to produce a library of phage particles, each displaying a single VHH. The titer and diversity of the phage library are validated.

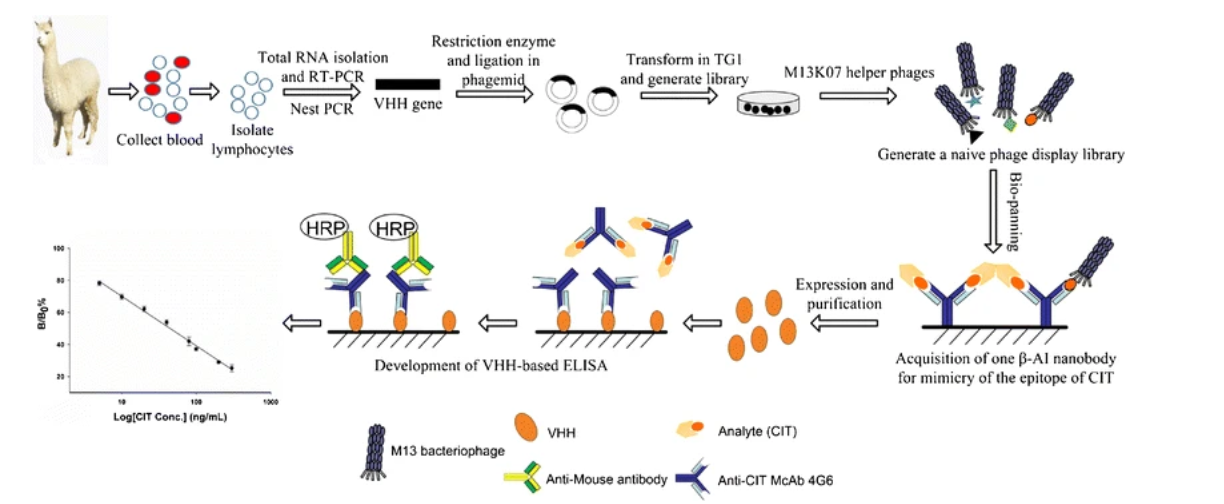

Figure1.Anti-idiotypic nanobody as citrinin mimotope from a naive alpaca heavy chain single domain antibody library.

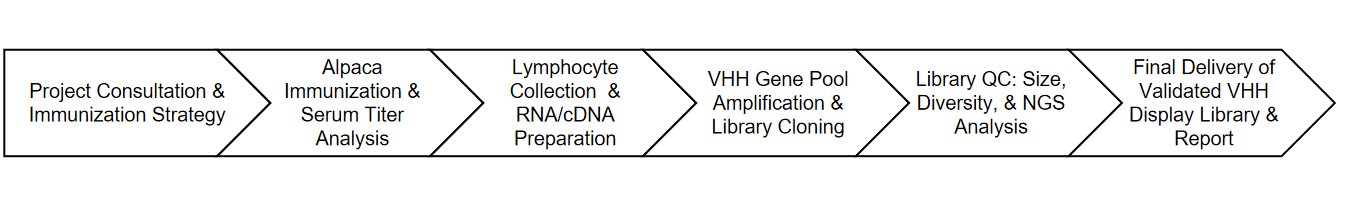

☞Nebulabio Service Process

Our service is designed for clarity, collaboration, and guaranteed delivery of a functional nanobody discovery library.

 Process Steps Description:

• Project Consultation & Strategy: We define the antigen, immunization strategy, and desired library format (phage/yeast).

• Alpaca Immunization & Monitoring: Execution of the immunization protocol with regular serological monitoring.

• Sample Collection & Genetic Material Prep: Blood collection for lymphocyte isolation, followed by RNA extraction and cDNA synthesis.

• Library Construction: Amplification of the VHH gene repertoire and its cloning into the chosen display vector to create the primary library.

• Library QC & Analysis: Comprehensive quality control to determine library size, insert efficiency, and sequence diversity. NGS provides a deep dive into the repertoire's composition.

• Final Delivery: The client receives the validated, ready-to-pan library (as glycerol stock of E. coli, purified phage particles, or DNA) along with a complete QC report and, if performed, NGS data analysis.

☞Why Choose Nebulabio?

• Direct Access to Premium Camelid Resources: We have established, ethical partnerships with alpaca farms and veterinary specialists, ensuring access to healthy animals and high-standard immunization procedures.

• Specialized Expertise in VHH Biology & Library Construction: Our team has deep, hands-on experience in camelid immunology and the unique molecular biology required for optimal VHH library generation, maximizing functional diversity.

• High-Diversity, Immune-Focused Libraries: Our immunization protocols and cloning strategies are fine-tuned to produce libraries with exceptional depth (>10^9 clones) that are inherently enriched for high-affinity binders against your target, saving significant screening time and effort.

• Integrated NGS Analysis: We offer optional deep sequencing of the naive and immune libraries, providing unparalleled insight into the immune response, clonal expansion, and library quality before you even begin panning.

• Seamless Path to Discovery: We are not just a library provider; we are a discovery partner. Our service is designed to seamlessly feed into our downstream nanobody screening, expression, and characterization platforms.

• Commitment to Ethical and Transparent Practices: All animal work is conducted under strict ethical review and welfare guidelines. We provide full transparency into our processes and data.

☞Applications of Alpaca Immunized Antibody Library

• Therapeutic Nanobody Discovery: Ideal for generating drug leads against complex targets like GPCRs, ion channels, and intracellular epitopes due to their small size and stability. VHHs are also excellent building blocks for CAR-T cells, bispecific engagers, and targeted drug conjugates.

• Diagnostic and Imaging Reagents: Their stability and small size make them perfect for developing rapid diagnostic tests (lateral flow), in vivo imaging probes (PET, SPECT), and biosensors.

• Structural Biology and Epitope Mapping: VHHs are superb tools for stabilizing flexible protein conformations for Cryo-EM and X-ray crystallography. They can also be used to map functional epitopes with high precision.

• Intracellular Targeting (Intrabodies): Expressed inside cells, VHHs can modulate or track the function of intracellular proteins, offering a powerful tool for cell biology research and potential gene therapy.

• Antiviral and Antimicrobial Agents: Their ability to access conserved, recessed viral epitopes (e.g., on influenza hemagglutinin or HIV envelope) makes them potent neutralizing agents against pathogens.

☞Discover the Next Generation of Antibody Therapeutics

Leverage the unique power of the alpaca immune system with our specialized library service. Unlock access to a world of stable, high-affinity nanobodies capable of solving challenges beyond the reach of conventional antibodies.

Contact us today to initiate your custom Alpaca Immunized Antibody Library project.
